Our Process

Our Process

Mix of machines and human touch

Our forging equipment is solid.
Our technology is current.
We know how to maintain it — and fix it in house should something go wrong.

We work closely with our customers to make forged products they use.
Most of the products we make are confidential.
Our customers come back to us because we deliver on time.

You’re probably looking at our website because someone dropped the ball.
If you’re not happy with your current forging company, please contact us.
We make it right or we make it again for free.

Equipment evidence

If you’ve read this far, you know the industry and need to know our level of capability.
Here’s what we use:

Equipment in our Hammer shop

1 – 3,000 lb. Chambersburg Board Drop Hammer

2 – 2,500 lb. Chambersburg Board Drop Hammer

3 – 60 Ton Bliss OBI Presses

1 – 600 KW Induction Unit (2020)

1 – 500 KW Induction Unit (2017)

1 – 300 KW Induction Unit (2023)

1 – 500 Hill Acme Billet Shear

1 – #7 American Wheelabrator

1 – Tsune CNC Saw (2020)

Equipment in our Die shop

1 – HAAS VF-7 3 axis Vertical Machining center

1 – HAAS VF-3 3 axis Vertical Machining center (2022)

1 – HAAS TL-2 CNC Lathe (2022)

2 – Bridgeport milling machines

1 – Kearney & Trecker horizontal mill

1 – LeBlonde Lathe

Capabilities of our closed die Forging operations

 .01 to 7 pound forgings
Carbon and micro steel alloys
Draft angles of 7 degrees or greater
Max length of 16”

(Click on an image to view larger images and descriptions)
  • Bundle of bars prior to cut-down to billets
    Bundle of bars prior to cut-down to billets

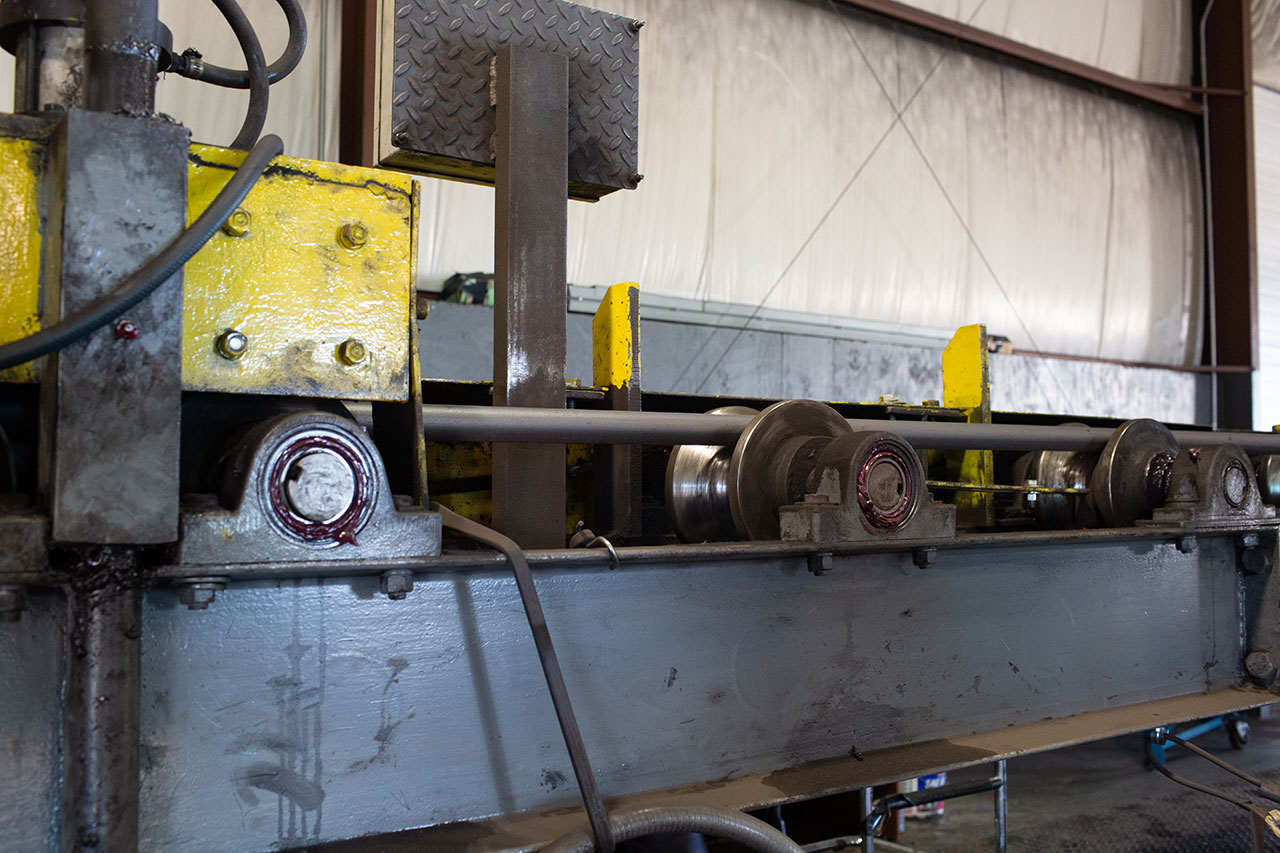

  • Bar being processed
    Bar being processed
  • Shear blades cutting billets
    Shear blades cutting billets

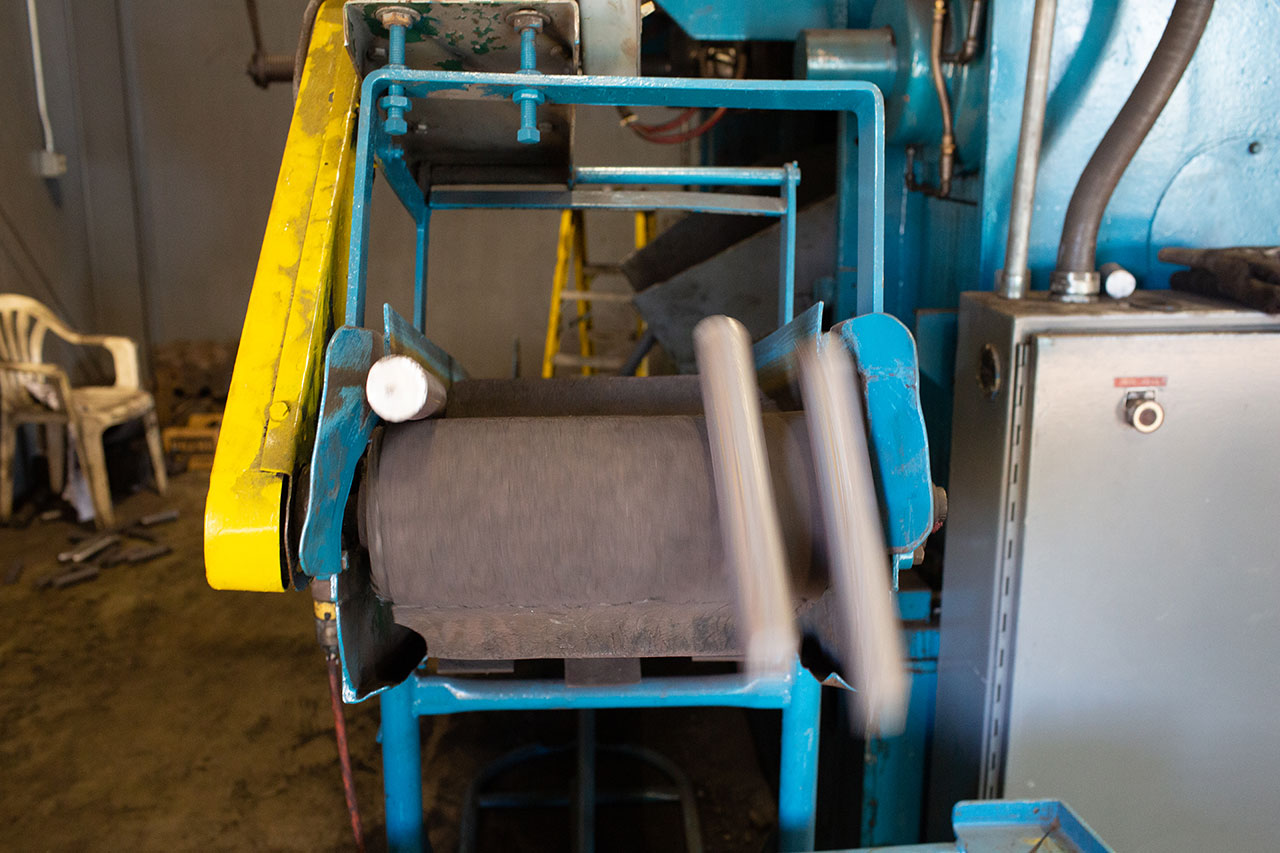

  • Conveyor delivering billets into box
    Conveyor delivering billets into box
  • Cold billet after each piece sheared
    Cold billet after each piece sheared

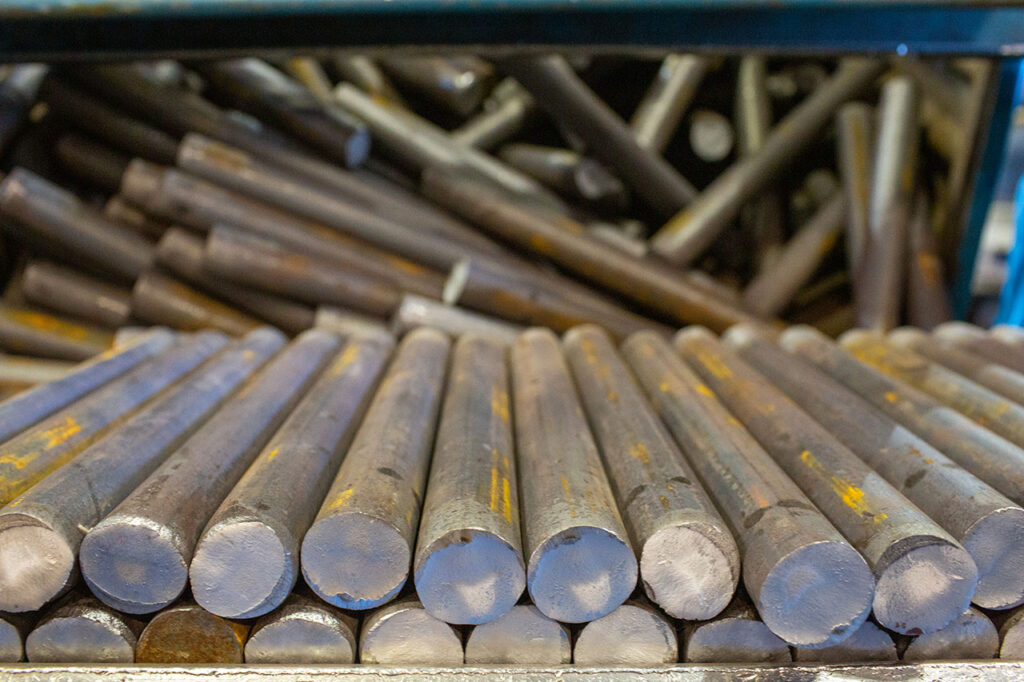

  • Billets stacked and ready to go into pitch roll
    Billets stacked and ready to go into pitch roll
  • Vibratory track prior to pinch roll
    Vibratory track prior to pinch roll
  • Pinch roll feeder pushing bars into coils to heat them
    Pinch roll feeder pushing bars into coils to heat them
  • 500kw induction unit made by Phoenix Induction
    500kw induction unit made by Phoenix Induction
  • Billet ready to be forged
    Billet ready to be forged
  • Hot bar ready to be forged
    Hot bar ready to be forged

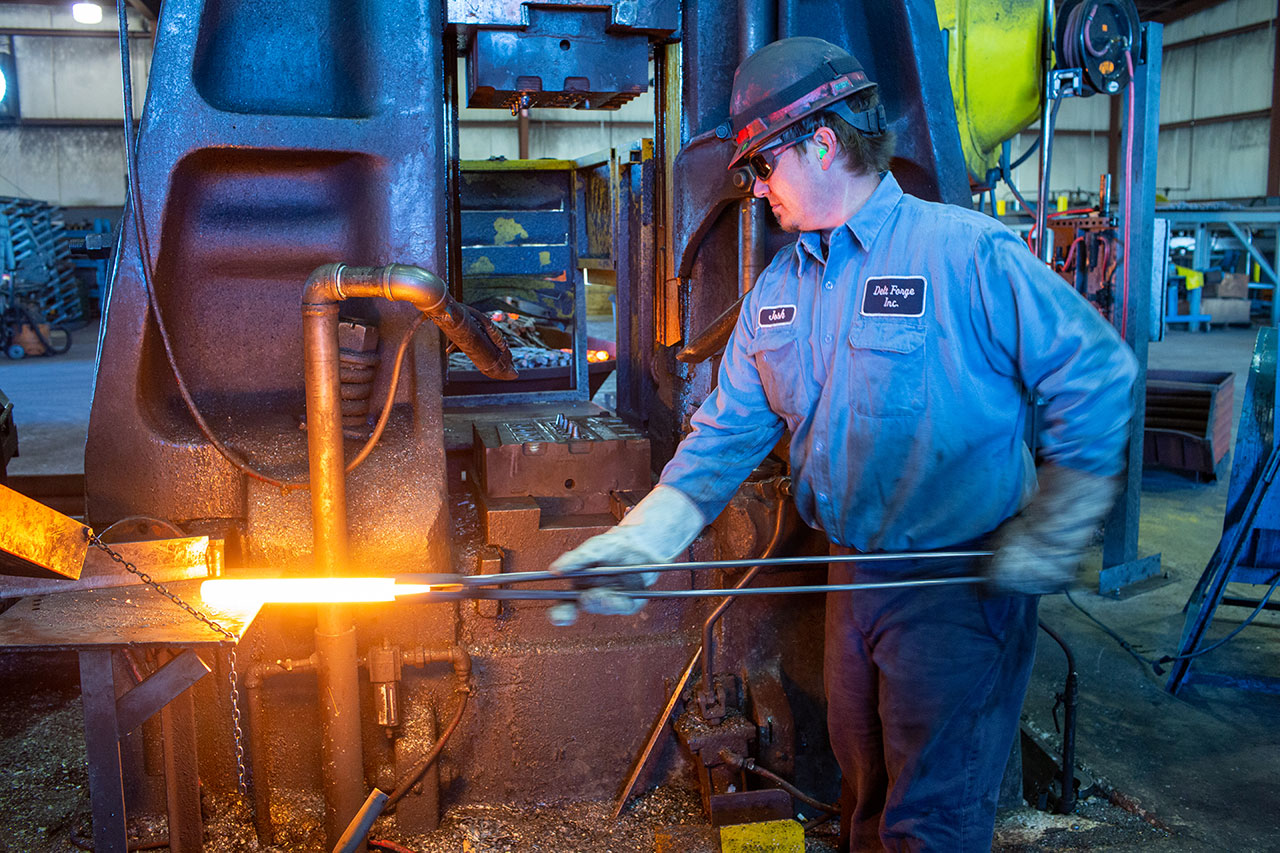

  • Using tongs to go into hammer
    Using tongs to go into hammer

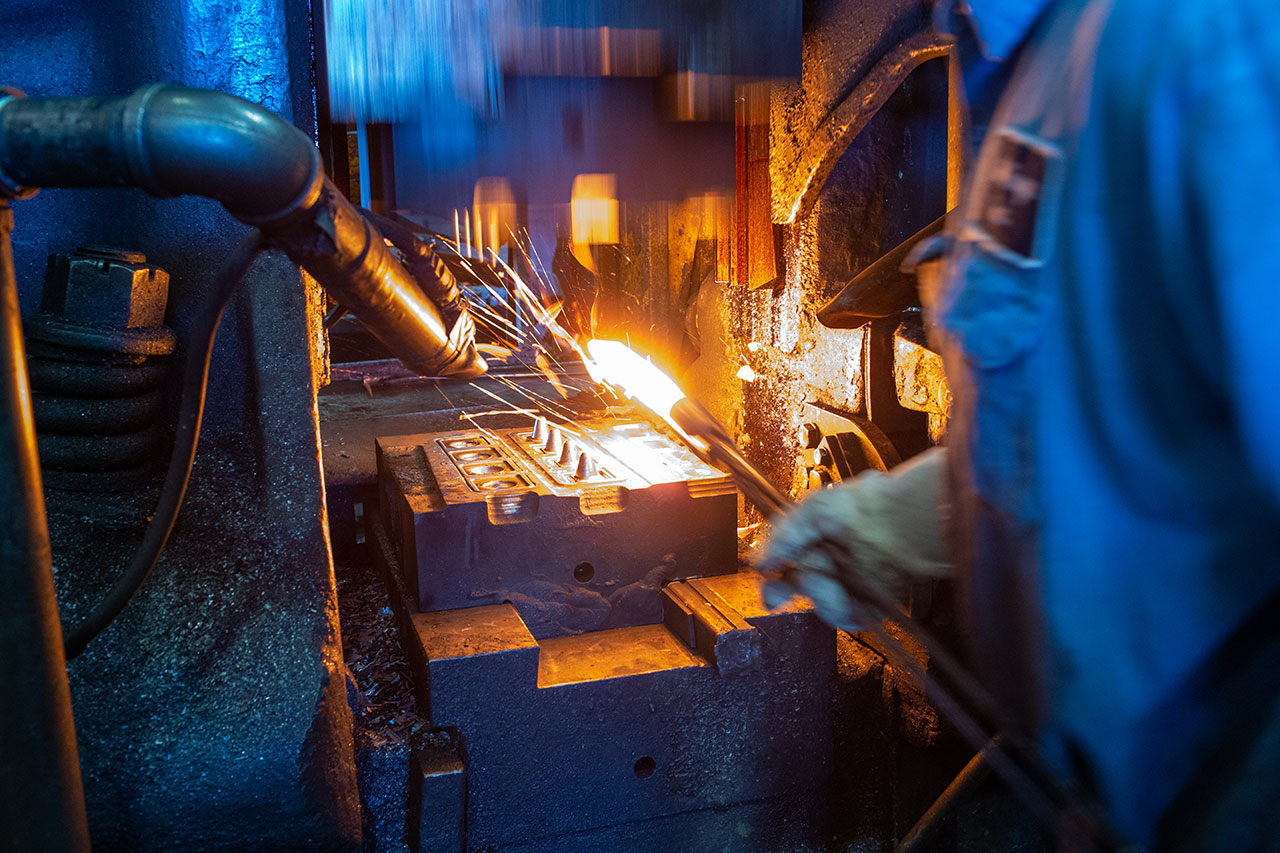

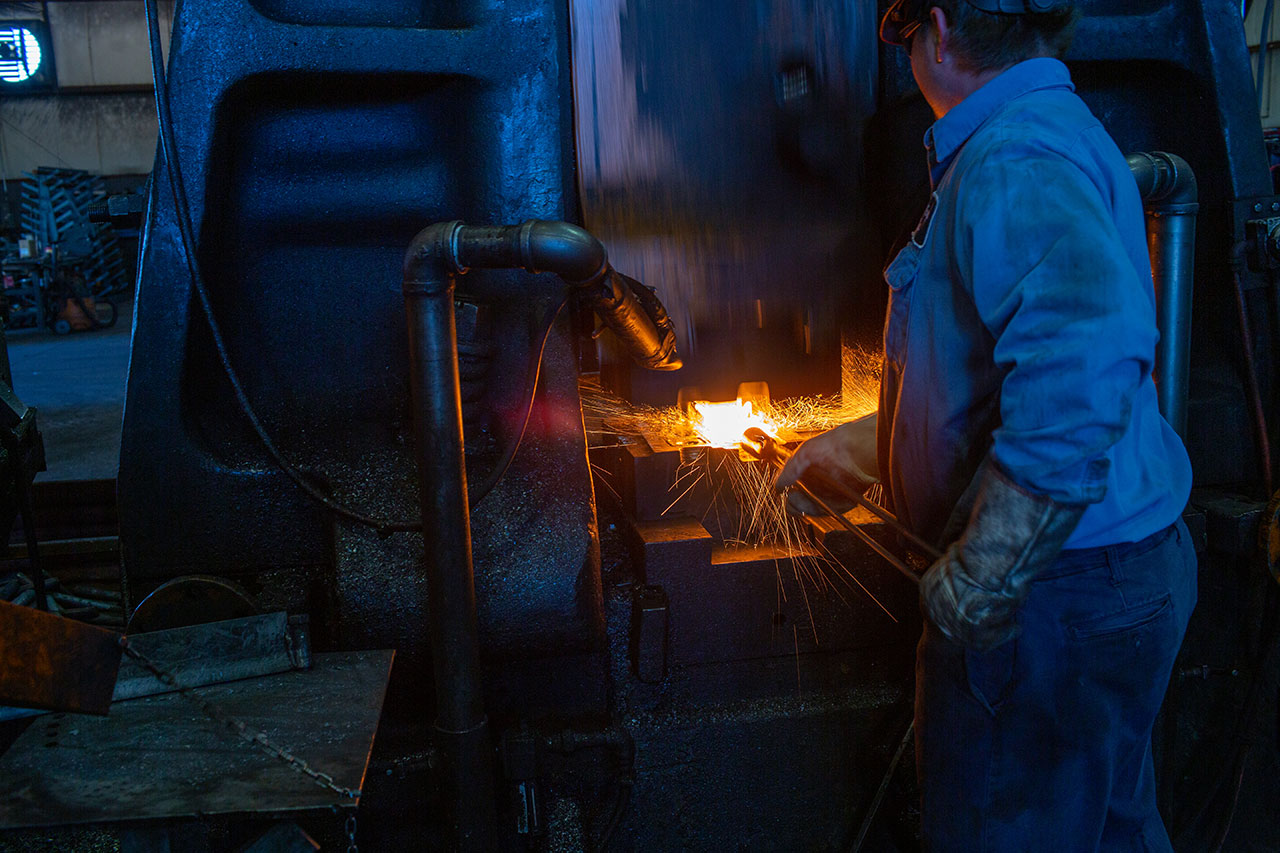

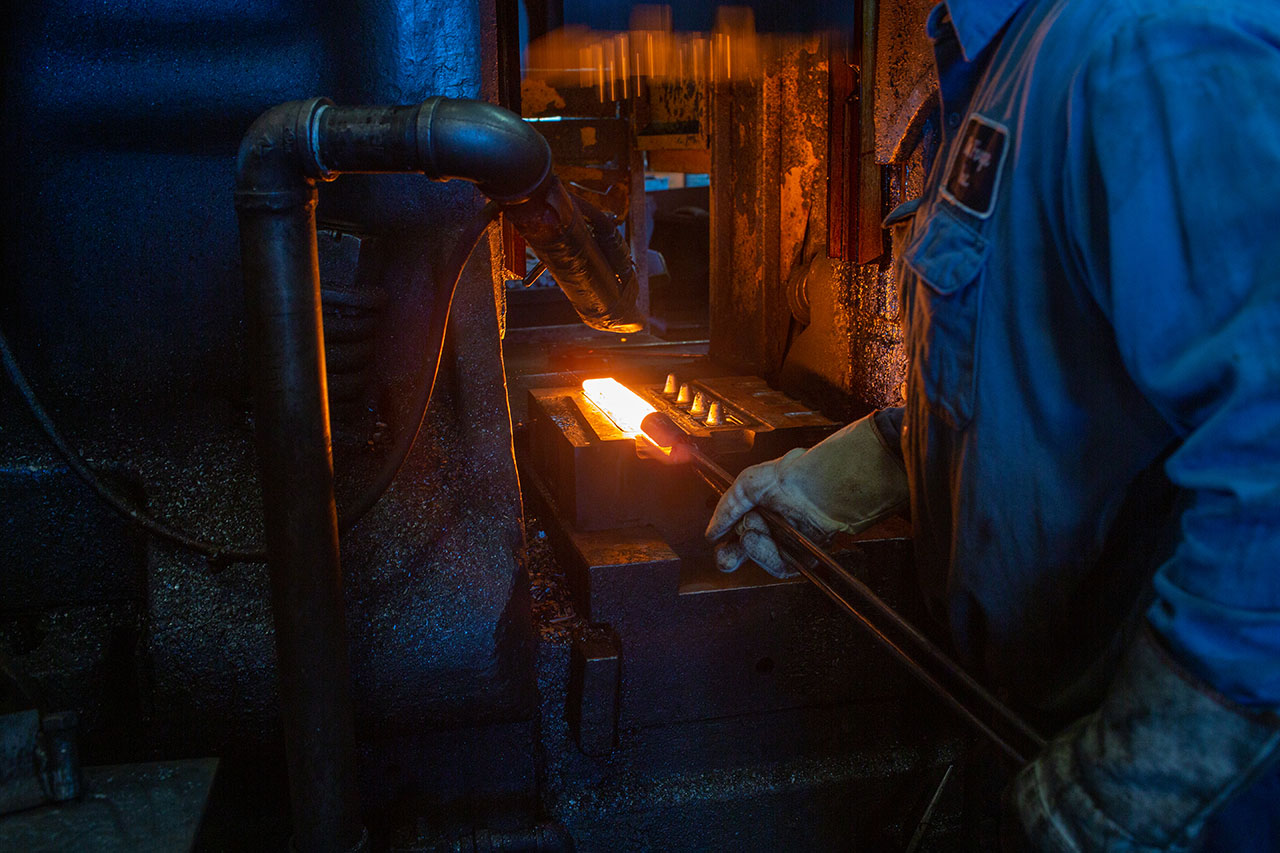

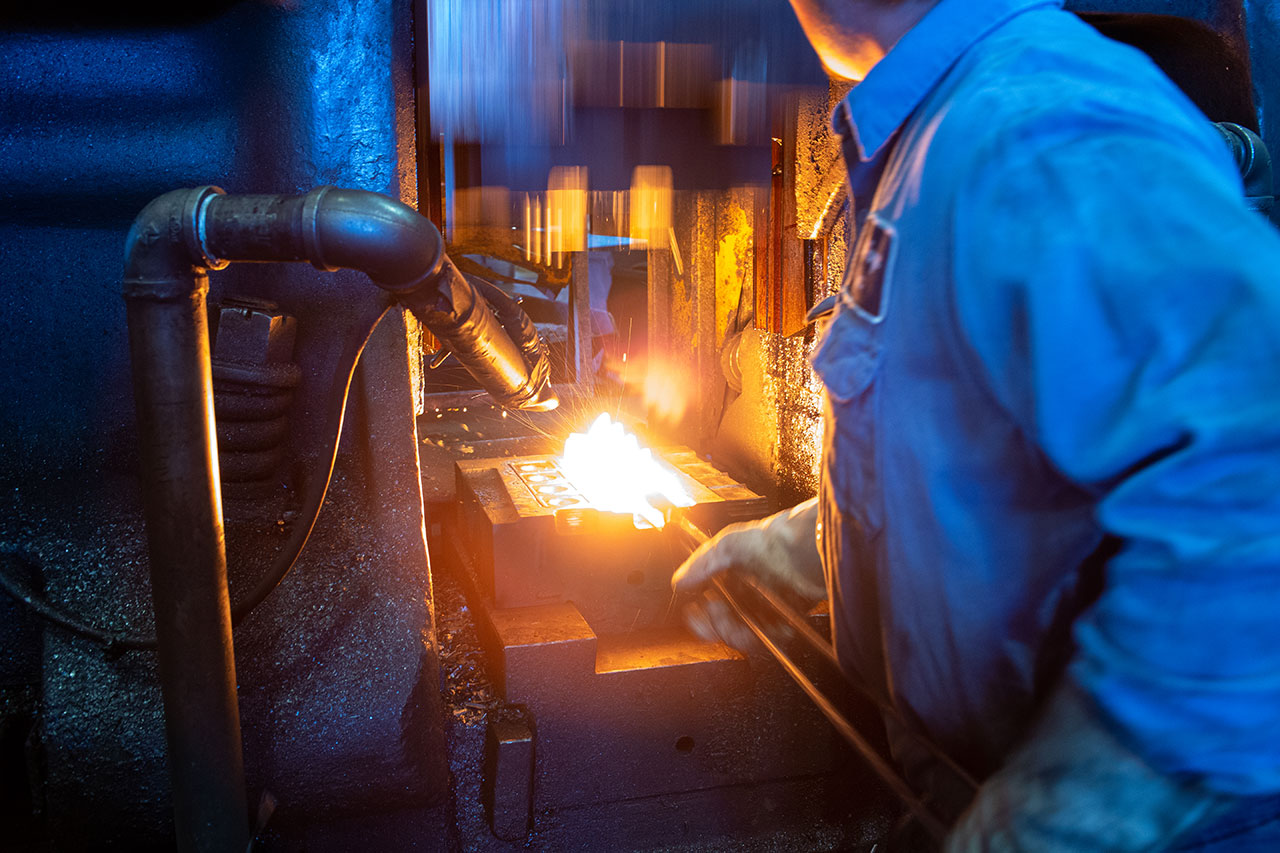

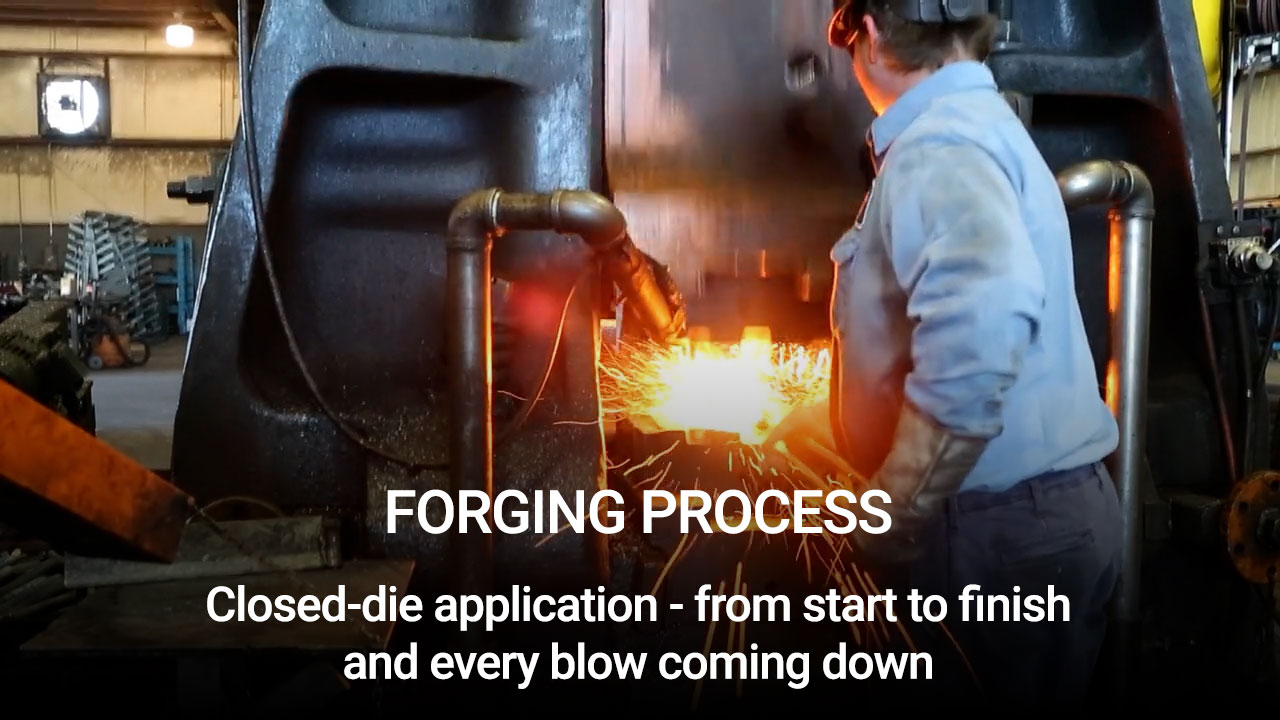

  • Forging process of a stacking cap. Closed-die application -- from start to finish and every blow coming down.
    Forging process of a stacking cap. Closed-die application — from start to finish and every blow coming down.
  • Forging process of a stacking cap. Closed-die application -- from start to finish and every blow coming down.
    Forging process of a stacking cap. Closed-die application — from start to finish and every blow coming down.
  • Forging process of a stacking cap. Closed-die application -- from start to finish and every blow coming down.
    Forging process of a stacking cap. Closed-die application — from start to finish and every blow coming down.
  • Forging process of a stacking cap. Closed-die application -- from start to finish and every blow coming down.
    Forging process of a stacking cap. Closed-die application — from start to finish and every blow coming down.

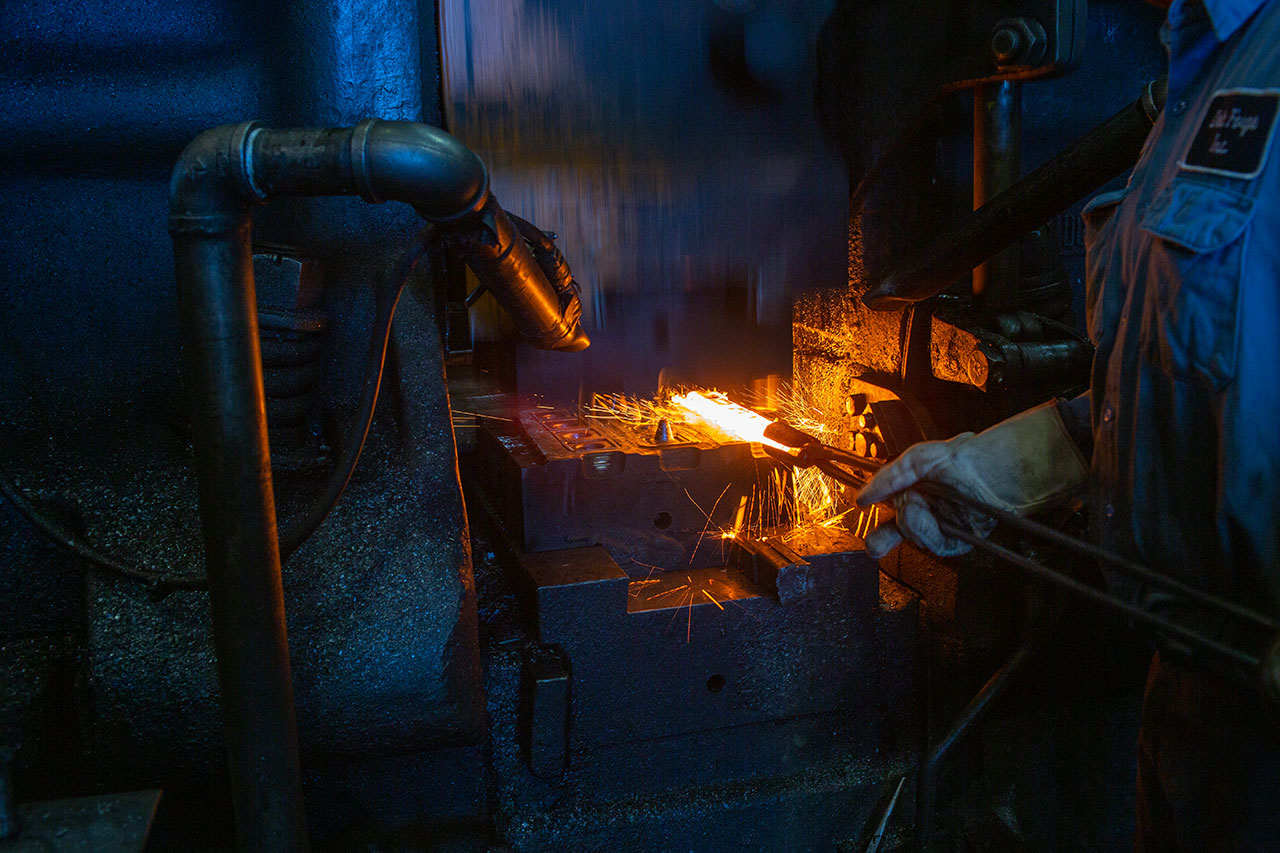

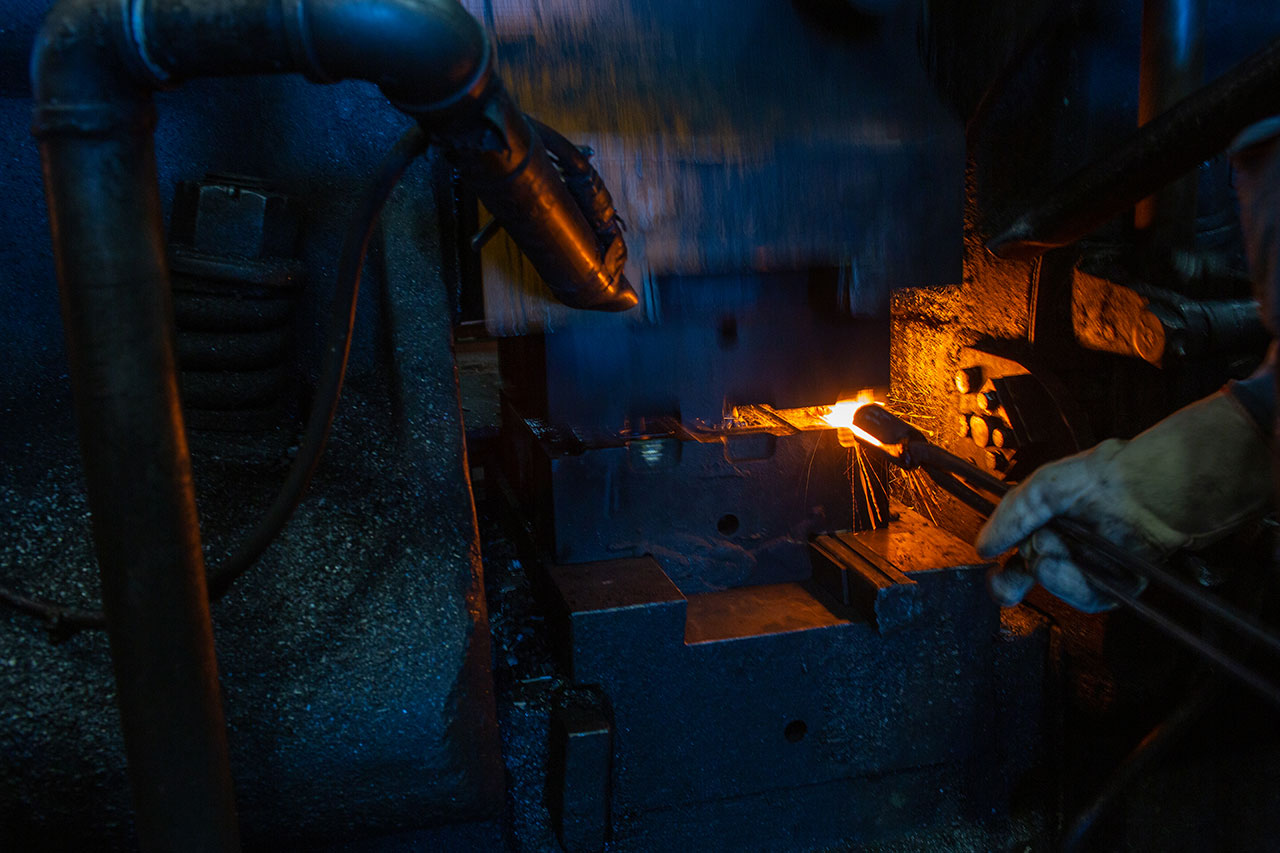

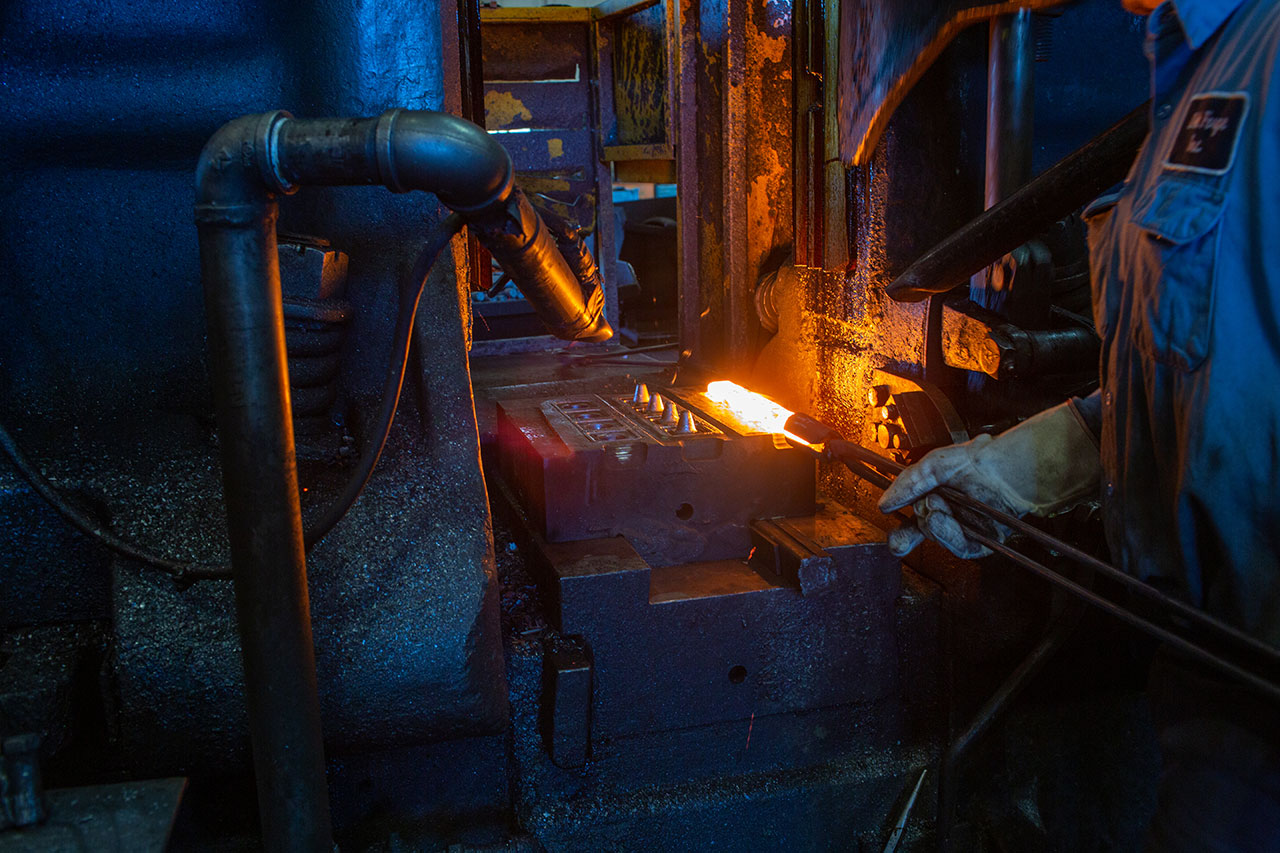

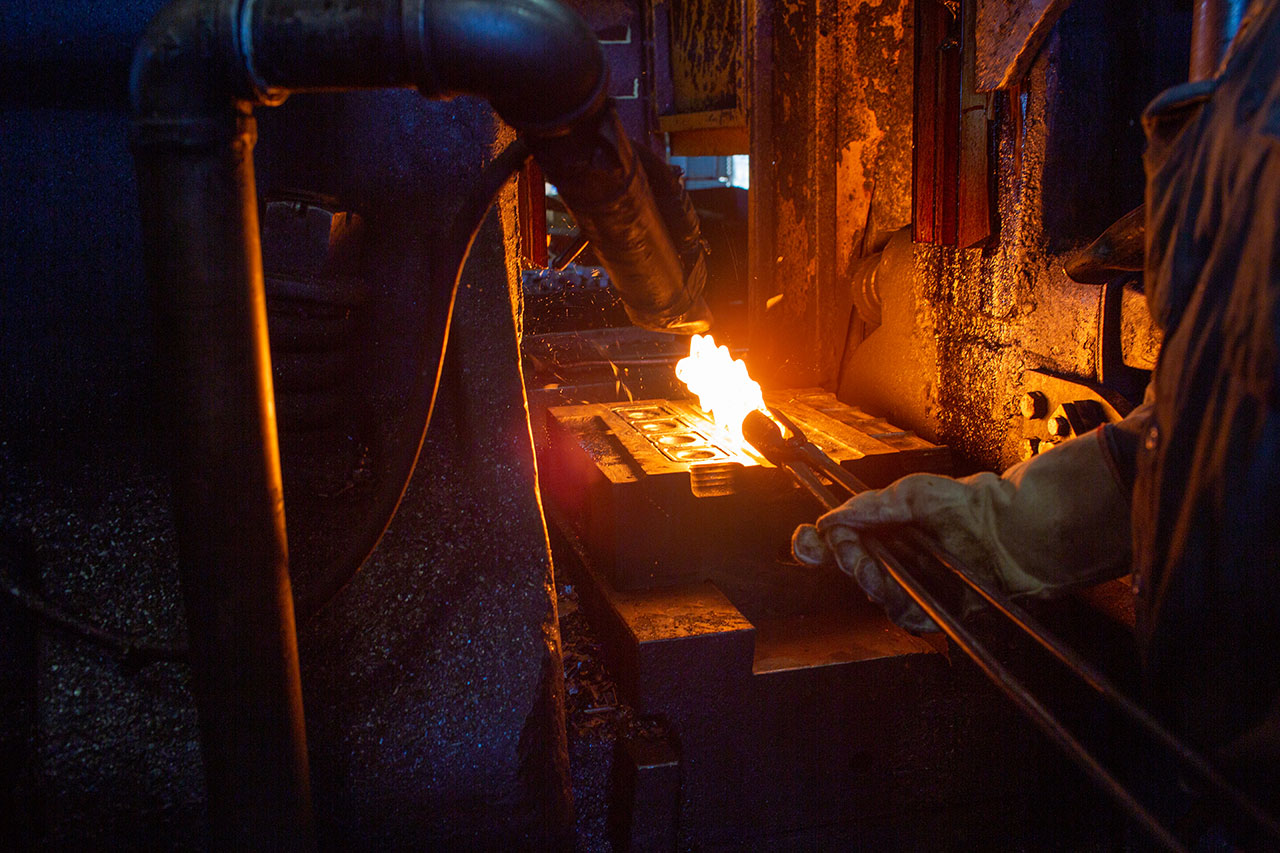

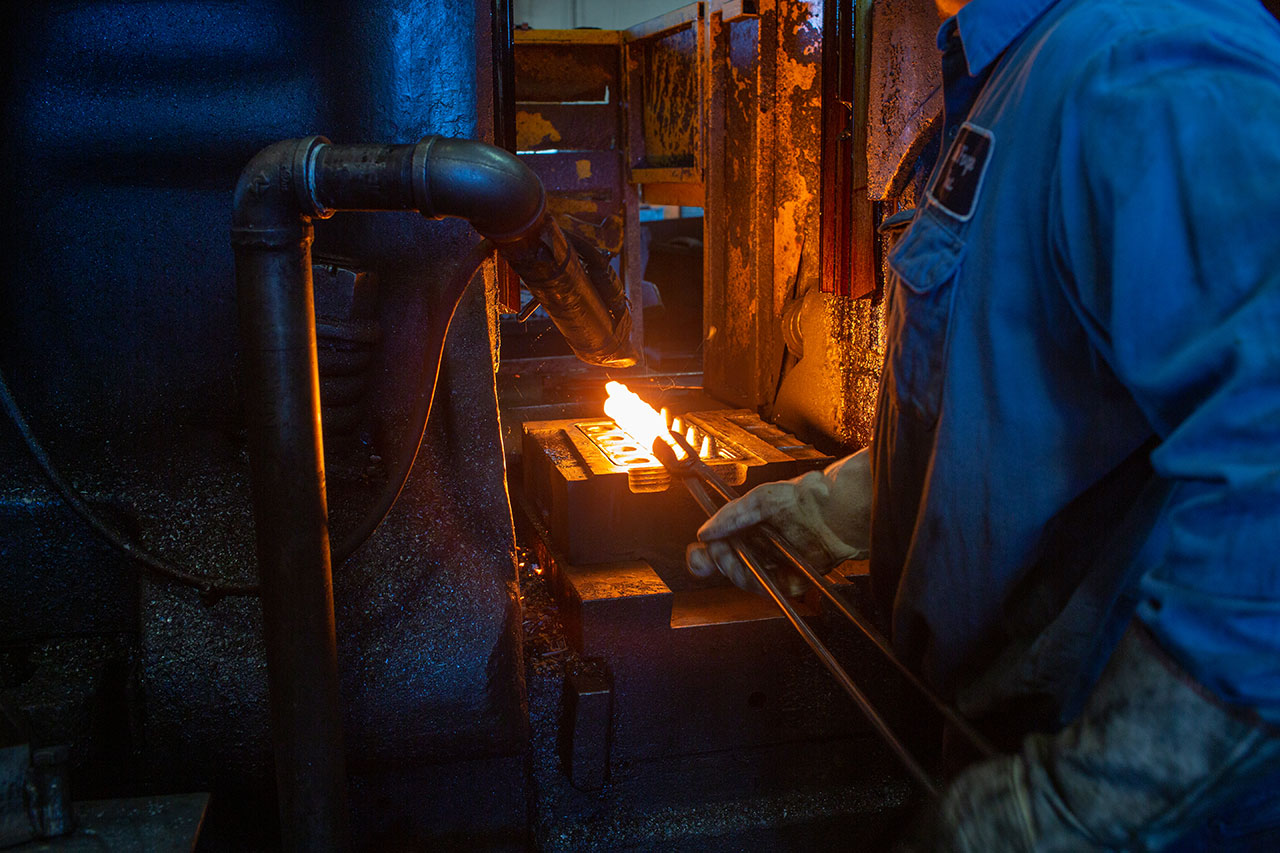

  • Forging process of a stacking cap
    Forging process of a stacking cap
  • Forging process of a stacking cap
    Forging process of a stacking cap
  • Forging process of a stacking cap
    Forging process of a stacking cap
  • Forging process of a stacking cap
    Forging process of a stacking cap
  • Forging process of a stacking cap
    Forging process of a stacking cap

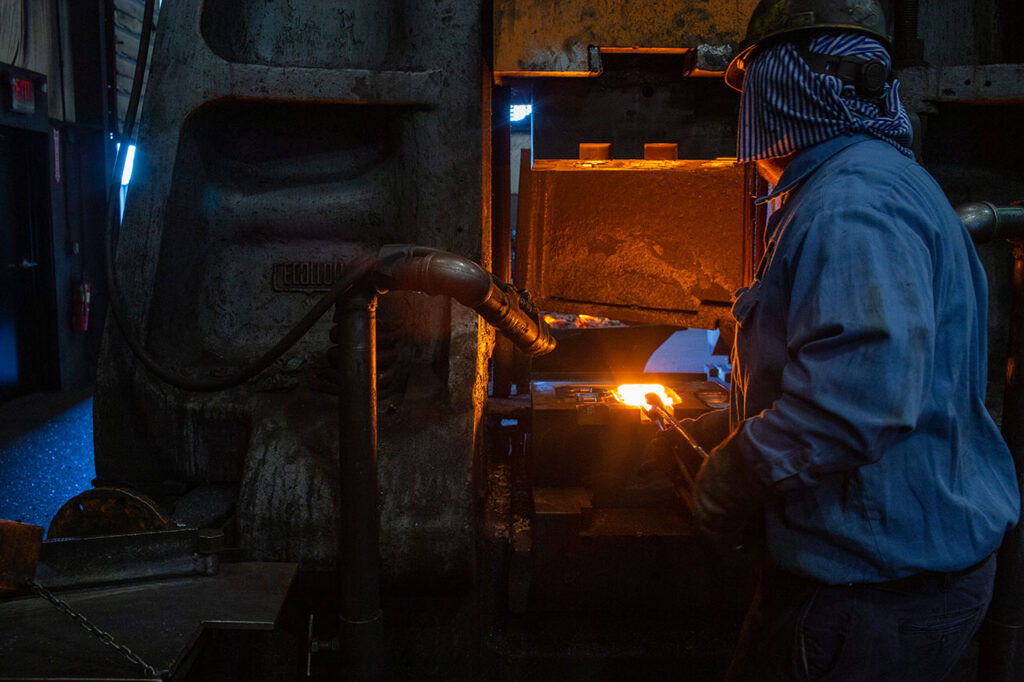

  • Forging process of a stump grinder
    Forging process of a stump grinder

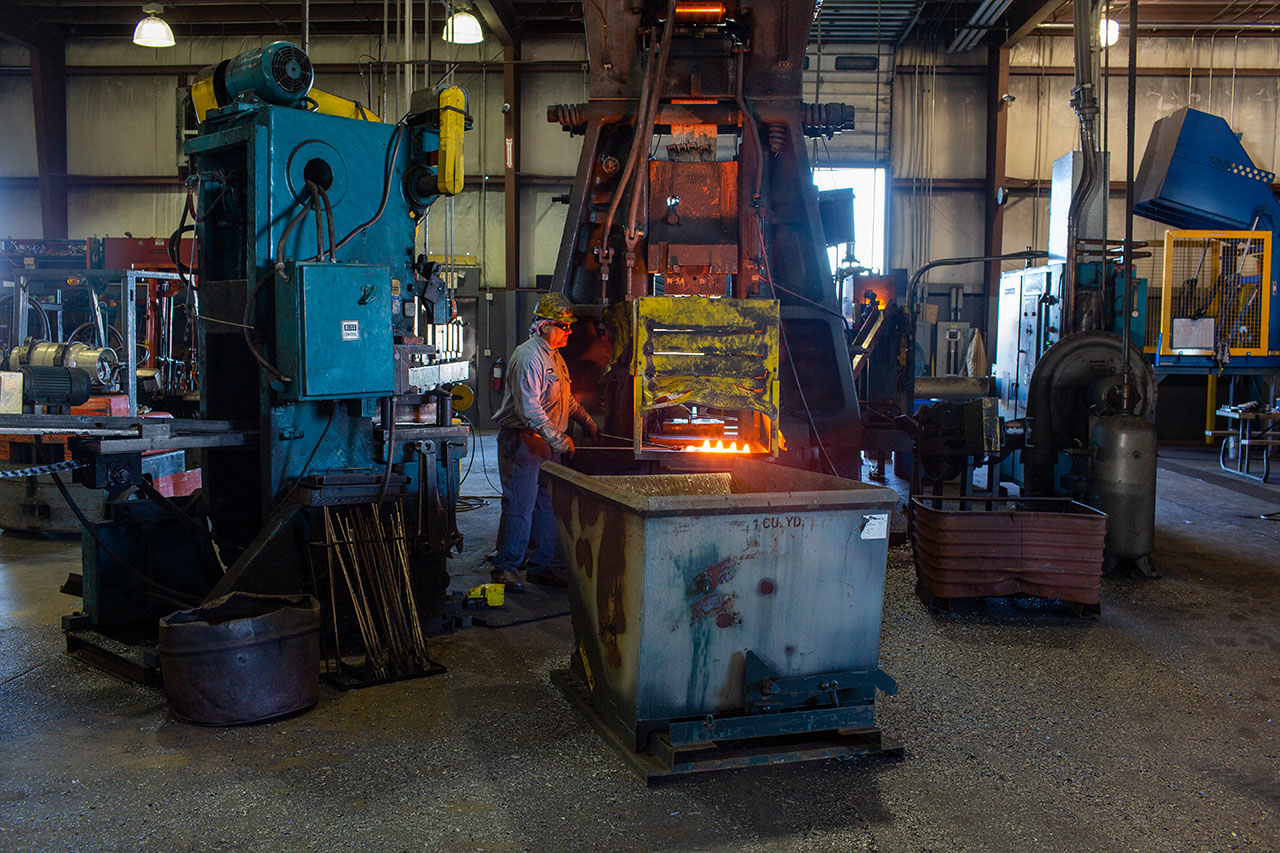

  • After out of hammer to trimmer
    After out of hammer to trimmer
  • After out of hammer to trimmer
  • Trimming excess flash
    Trimming excess flash
  • Trimming process trimming excess flash
    Trimming process trimming excess flash
  • Caps after trim
    Caps after trim
  • Inspecting cap for quality
    Inspecting cap for quality
  • Stump grinding feeds before heading to the wheelabrator to be cleaned up
    Stump grinding feeds before heading to the wheelabrator to be cleaned up
  • Shot that goes in the wheelabrator to clean up parts
    Shot that goes in the wheelabrator to clean up parts
  • Inspection of stump grinding feeds
    Inspection of stump grinding feeds
  • Inspection of stump grinding feeds
    Inspection of stump grinding feeds
  • Inspecting stump grinding feeds
    Inspecting stump grinding feeds
  • Stump grinding feeds being inspected as they come out of the wheelabrator
    Stump grinding feeds being inspected as they come out of the wheelabrator
  • Inspected with the human touch
    Inspected with the human touch
  • Stump grinding feeds cleaned, finished and ready for shipment
    Stump grinding feeds cleaned, finished and ready for shipment
  • Finished caps ready for shipment
    Finished caps ready for shipment
